Essential Guide: LED Driver vs Power Supply for Pros

When it comes to electronics, the difference between what appears to be similar components is vital to both peak performance and durability. One of the most crucial, yet misinterpreted distinctions is the difference between an LED driver and a general power supply. This is not merely theoretical to those in the business of lighting or industrial systems or complex electronic design. It has a direct bearing on the success of projects, their efficiency and safety. In this guide, we will carefully deconstruct these two important elements and assist you in making informed choices in your next venture.

Understanding Power Basics: Voltage vs. Current

Voltage and current are at the core of every electrical system. Voltage can be thought of as the electrical pressure that forces the electrons through a circuit and is measured in volts (V). Current, however, is the real rate of flow of those electrons, which is measured in amperes (A). The first requirement in most of the electronic devices is a stable supply of voltage. Your laptop, say, requires a specific voltage to be supplied, and the internal components will then take the current they require.

But Light Emitting Diodes (LEDs) are different. They are current-driven devices in nature. This is to say that their brightness and life span are directly, and quite sensitively, dependent upon the current passing through them, rather than simply the voltage across them. The forward voltage drop of an LED varies with temperature, and can vary with manufacturing differences, and even age. When you drive an LED with a fixed voltage without regulating the current, a small change in voltage could cause a huge increase in current. This spike can easily overheat the LED and lead to rapid degradation, early dimming or outright failure of the LED. This basic property makes constant current the most important when it comes to operating LED. It is as though you were regulating the water flowing through a sensitive irrigation system: you would not simply want a steady pressure, you would require a steady rate of flow in order to grow the plants properly.

What Defines an LED Driver? (Beyond Power)

The LED driver is much more than a simple power-providing component. It is a complex protector specially designed to meet the particular needs of LEDs. Its main purpose is to deliver a steady and controlled current to the LEDs, even in the face of small variations in input voltage or variations in the forward voltage of the LED with temperature. This is a steady current source which maintains steady brightness, eliminates thermal runaway and greatly increases the life time of the LED array. It is the LED power supply which is specialized in the field of accurate lighting.

Beyond current regulation, LED drivers often incorporate a suite of critical features:

• Protection Mechanisms: LED drivers are designed with protection against typical electrical traps. These are over-voltage protection (OVP), over-current protection (OCP), short-circuit protection (SCP) and over-temperature protection (OTP). These characteristics are essential to ensure that the LED array, as well as the driver itself, is not damaged by faults or abnormal operating conditions.
• Dimming Capabilities: Adjustable brightness is a common requirement of modern lighting applications. LED drivers enable adjustable brightness by means of Pulse Width Modulation (PWM) which turns the LED on and off at a rapid pace to control brightness or 0-10V analog dimming which uses a low voltage signal to control the output level. More sophisticated drivers support digital protocols like DALI and DMX.
• Efficiency and Power Factor Correction (PFC): LED drivers are optimized to be efficient, and do not waste much energy as heat. Most also feature active Power Factor Correction (PFC) which causes the driver to draw current from the AC mains in phase with the voltage, minimising reactive power and increasing the overall system efficiency and compatibility with the grid. This is essential in large scale installations to prevent fines imposed by utility firms.

LED drivers come in two primary configurations:

• Constant Current (CC) LED Drivers: CC drivers are the most common for discrete or arrays of LEDs. They give an output current of 350mA or 700mA over a certain voltage range. The driver changes its output voltage to ensure that the current remains constant. This is how the CC driver is able to keep the current constant.
• Constant Voltage (CV) LED Drivers: These drivers offer a fixed output of voltage such as 12V or 24V. CV drivers are normally used for LED strips or modules which have integrated current limiting resistors. Although these drivers output a constant voltage, the LED current control is done by the built in resistors, therefore making them inefficient for bare LEDs.

Understanding these specialized functions highlights why an LED driver is an indispensable component for any serious LED lighting project.

Key Differences: Driver’s Precision vs. Supply’s Versatility

The fundamental difference between an LED driver and a typical power supply comes down to their main task current regulation versus voltage regulation. Although both transform input power (usually AC) to a useful DC output, the control method and end use are quite different.

Here’s a detailed comparison to illuminate these differences:

This table vividly explains that even though both of them can supply DC power, an LED driver is a highly sensitive tool that carefully supplies the exact amount of current that LEDs desire. A general power supply, in contrast, is a sturdy workhorse, providing a regulated voltage to a broad range of devices which regulate their own current consumption.

The Role of a General Power Supply

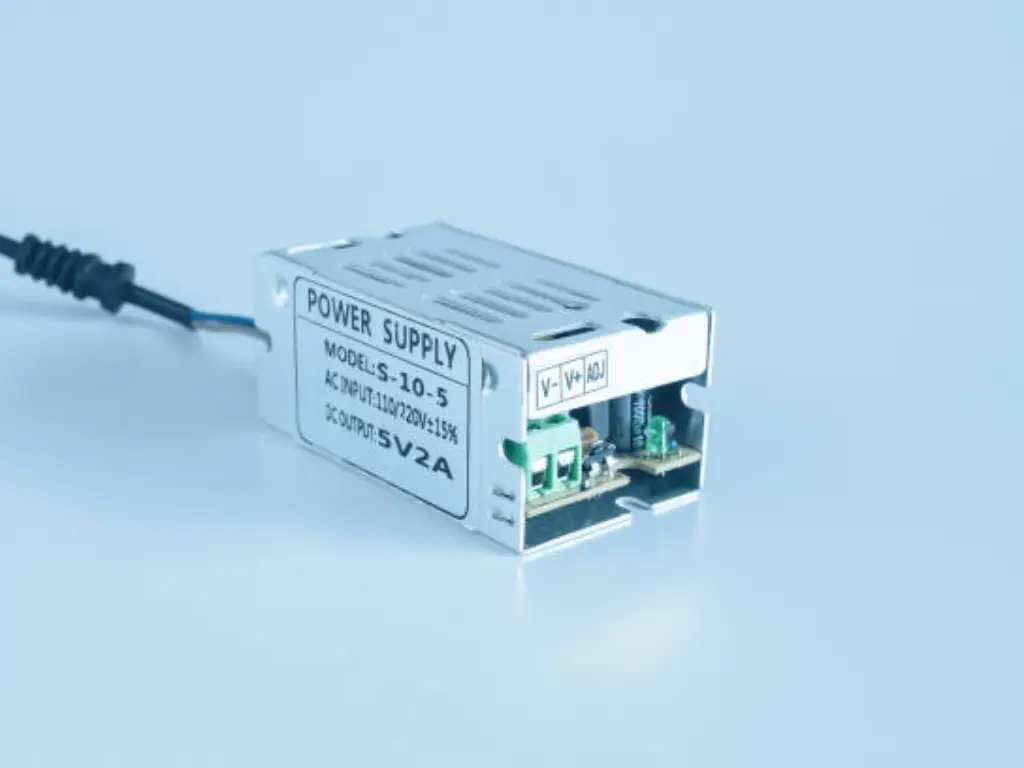

A general power supply and switching power supply (SMPS) serves as the backbone for countless electronic systems. Its key function is to convert incoming AC power from the mains into a stable DC voltage efficiently. Unlike linear power supplies, SMPS units use rapid switching of a power transistor to achieve this conversion. The result is more efficient, less heat generation, and smaller size. Efficiency explains the prevalence of PSUs in nearly all electronic devices.

Power supplies versatility is their strongest suit. Designed to deliver fixed output voltages (5V, 12V, 24V, 48V), and also supply varying currents up to a maximum rating while enabling the connected load to draw what it needs. These make them ideal for:

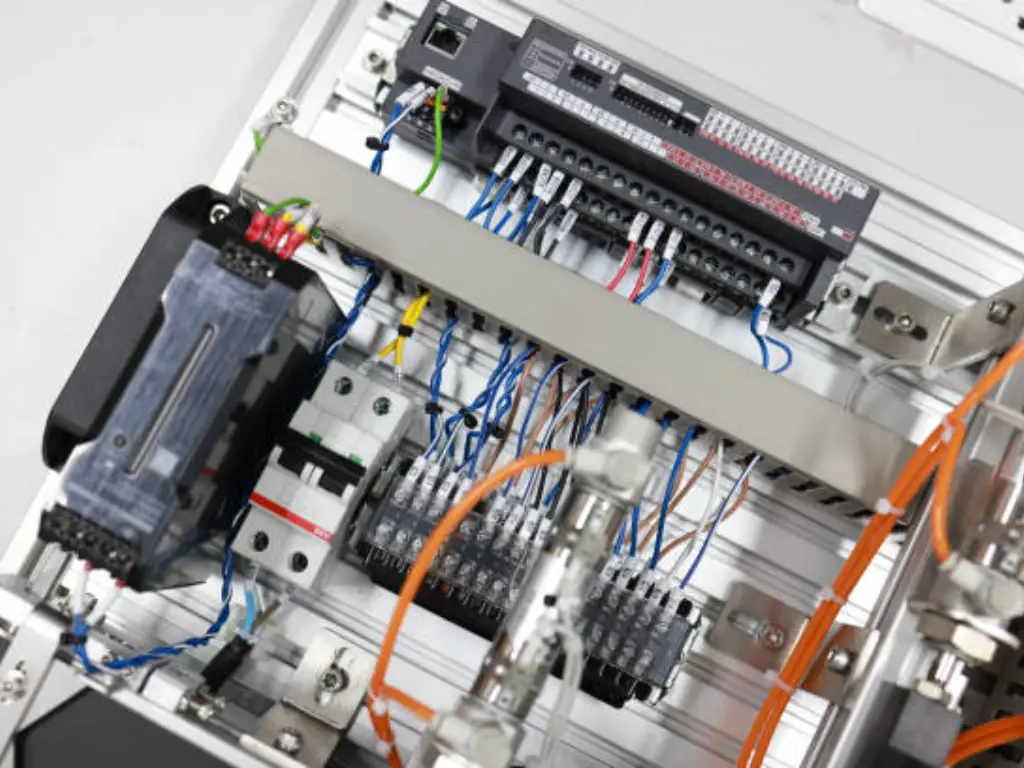

• Industrial Automation: PLCs, sensors, motors, and control systems.
• Telecommunications: Network equipment, servers, and communication infrastructure.
• Consumer Electronics: Laptop and smartphone chargers, power for home appliances.
• Security Systems: CCTV cameras, access control units and alarm systems, and other powered alarms.
• IT Infrastructure: Servers, networking switches, and data center equipment.

Why Choose OMCH for Your Power Supply Needs

You, as a professional in this industry, require dependability and performance of your power solutions. OMCH, being a specialized switching power supply supplier, provides a complete line of high performance, high reliability switching power supplies. Our solutions are carefully designed to address the high requirement of various industrial and electronic applications, which are stable in operation, highly energy efficient, and fulfill the strict quality standards. When you need to power your most important systems, you need OMCH products which are associated with the qualities of robustness and consistency.

A general power supply will do an excellent job of providing regulated voltage to drive a wide variety of loads, but will not have the specific current regulation and LED-specific protections found in an LED driver. This difference is critical with sensitive, current-hungry LEDs.

When to Use Which: Application Scenarios

The decision to use an LED driver or a general power supply depends solely on the application and most importantly what kind of LED load you are powering. A poor selection may result in less-than-optimal performance, a shorter life, or a disastrous failure.

You must use an LED Driver when:

• Powering High-Power LEDs: Single high-power LEDs (e.g., 1W, 3W, 5W or COB arrays) need exacting current control. They will rapidly heat and burn out unless driven with a special constant current LED driver. This is one area that a special LED power supply excels.
• Implementing Advanced Dimming: In case your lighting design needs dimming with no flicker (particularly at low light levels), an LED driver with built-in dimming protocols (PWM, 0-10V, DALI) is mandatory. This control is not provided by general power supplies.
• Ensuring Long-Term Reliability and Lifetime: When used in commercial, industrial, or outdoor applications and longevity and reliability are the primary concerns, the protective measures and current control of an LED driver will go a long way in ensuring your LED luminaires last as long as possible. It is as good as employing a personal trainer to work with your high-performance athletes to make sure that they are giving their best without sustaining an injury.
• Compliance with Lighting Standards: Various regulatory agencies and industry standards related to professional lighting (e.g., Energy Star, DLC) require certain performance requirements related to flicker, efficiency, and power factor which are often not achievable with general-purpose LED drivers.

You can use a General Power Supply when:

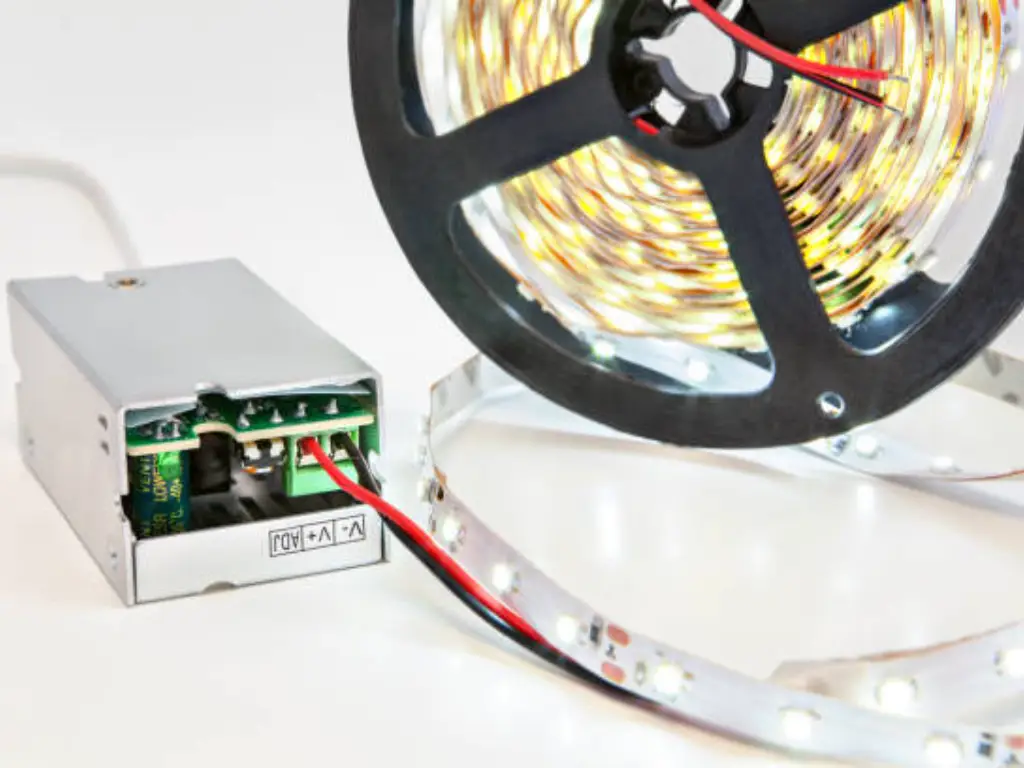

• Powering LED Strips with Built-in Resistors: Most popular LED light strips (e.g., 12V or 24V strips) include current-limiting resistors in their design. With these, any typical constant voltage power supply that is equal to the voltage requirement of the strip will operate properly, with the resistors handling the current to each segment of the LEDs. A large number of general-purpose PSUs fit well in this application.
• DIY Projects with Low-Power, Resistor-Limited LEDs: In hobbyist applications where single LEDs are driven with a calculated series resistor, a generic constant voltage power supply may be adequate. This must however be carefully selected and calculated to limit current properly.
• When the LED is Part of a Larger System with its Own Internal Driver: In some cases, a complex LED fixture may have a standard 12V or 24V input from a general power supply, but it has its own internal mini-LED driver or current regulator to drive the LEDs. Fixture specifications should always be checked.
• Non-Lighting Applications: This is the most apparent case. A general power supply is the right and most cost-efficient solution when it comes to any device that merely needs a stable DC voltage (e.g., a security camera, a motor, a control board).

The key takeaway for professionals is to always assess the LED load’s specific current requirements and whether the application demands precision control, dimming, and advanced protection beyond just providing a stable voltage.

Advanced Considerations for Professionals

To the experienced professional, choosing a power solution is more than just current and voltage. There are a number of advanced parameters that can have a big influence on system performance, compliance and long term costs.

• Power Factor Correction (PFC): This is the measure of the efficiency of electrical power to useful work. An improved power factor (nearer 1) implies a reduced reactive power, lesser energy-wasting, and lower utility costs, particularly in large installations. Active PFC, found on high-quality LED power supply units and general PSUs, is frequently a regulatory requirement.
• Total Harmonic Distortion (THD): Non-linear loads, such as switching power supplies, may harmonic distort the AC mains, distorting the waveform. Low THD is important to avoid interferences with other sensitive loads and to meet the power quality standards.
• Electromagnetic Compatibility (EMC) / Electromagnetic Interference (EMI): LED drivers as well as power supplies emit electromagnetic noise. A well-designed product will reduce the emissions of EMI to avoid interfering with other nearby electronic equipment, and a good EMC will make sure that the unit is not sensitive to external noise. Conformance to regulations such as FCC Part 15, CISPR, or EN 55015 (in the case of lighting) is essential.
• Thermal Management: The foe of electronics is heat. Thermal design in drivers and power supplies is important to long life and stable operation. Note operating temperature ranges, heatsink considerations and mounting options.
• Ingress Protection (IP) Rating: The IP rating is used to denote the level of protection against solid (dust) and liquid (water) in the case of outdoor use or harsh industrial settings. Such as an IP67 rated LED power supply can be used in damp or wet
• Safety and Regulatory Certifications: International safety standards (UL, CE, TUV, ENEC, CCC) are mandatory. Such certifications mean that the product complies with high safety standards and can be legally sold in other markets.
• Ripple and Noise: Low output ripple and noise are necessary in sensitive applications. LEDs may become visibly flicker or other electronic circuits may become unstable due to high ripple.
• Warranty and Longevity: Take a look at the warranty provided by the manufacturer as well as the estimated life (MTBF – Mean Time Between Failures) of the device. The longer the warranty the more confidence in the quality and durability of the product.

Optimizing Your System: Efficiency & Longevity

Professionals know that choosing the appropriate power supply or LED driver is more than just powering devices, it is creating systems that are reliable and efficient.

Begin with efficiency. Select high-efficiency units with a rating over 90 percent that turn more power into usable energy and produce less heat. That cooling decrease in stress on internal parts and assists in reducing operating expenses. Also, load the power unit correctly. The majority are optimized at 70-90 percent of their rated capacity. Operating them at times too near full load may reduce life span, and operating far below full load may lower efficiency. Wiring is important too; the smaller the wire gauge the less the voltage drop, particularly in long runs.

Thermal management is crucial to longevity. The foe of electronics is heat. Make sure your power supply or LED driver is well ventilated and not placed in small, non-ventilated areas. With LED systems, it is critical to ensure that the output of the driver is matched to the voltage and current requirements of the LED array. LEDs wear out more quickly and reduce service life when over-driven.

Another clever action is surge protection. The installation of protection devices also serves to offer protection against sudden voltage spikes that occur frequently in unstable power environments. Lastly, never compromise on quality. Cheaper units might look good, however, they tend to break down the first. A poor quality power supply unit is like a poor foundation in a house, it jeopardizes the entire system.

With an eye toward efficiency, heat management and component selection, practitioners can create power systems that offer reliability and long-term investment.

Future Trends: Smart Power for LEDs

The power electronics landscape is ever changing and LED drivers are leading the pack in this new development. The push to smarter, networked, and more flexible lighting systems is transforming the way we energize LEDs.

• IoT Integration and Connectivity: The Future Integration of Power Supply Units LEDs will incorporate the Internet of Things IoT into Power Supply Units (PSU) LEDs (drivers). This includes drivers with Wi-Fi, Bluetooth, Zigbee, or LoRa. Such drivers will allow remote monitoring, diagnostics, and control of individual luminaires. Picture a smart city where streetlights report their health, energy expenditure and environmental metrics.
• Advanced Digital Dimming and Color Tuning: Further advancements will offer more advanced dimming control of light spectrum (tunable white), color temperature (CCT), and full-spectrum color mixing RGBW. DALI-2 has adopted new approaches to digital protocols for the integration of sophisticated building management systems and will allow more granular control.
• Miniaturization and Higher Power Density: Density Light fixtures will become more compact and the design will be more flexible due to new semiconductor materials, GaN and SiC which are enabling drivers to be smaller, lighter, and more efficient with power output.
• Predictive Maintenance and Diagnostics: Smart drivers will be able to monitor their performance with smart LEDs, enabling Predictive Maintenance. They can also warn users of pending LED failures or driver deformations, allowing proposed changes before total blackouts, making them smarter.
• Li-Fi Integration: Some new ideas suggest that LED drivers could be incorporated as integral parts of Li-Fi (Light Fidelity) systems which use light for data transmission and could potentially transform any light fittings into high-speed data access points.
• Energy Harvesting and Self-Powered Solutions: Research into self-powered LED solutions, such as solar, kinetic, or thermal energy harvesting, is still in its infancy. However, it has the potential to greatly enhance lighting design in remote or off-grid locations. These systems would require drivers designed for ultra-low power consumption.

These trends emphasize a future where the division between power delivery and smart control becomes increasingly indistinct. For industry experts, monitoring these changes will be essential as they craft advanced, adaptable LED lighting systems. The change of the LED driver from a basic power converter to a complex, command-and-control network system illustrates the driver’s important and increasing position in modern technology.
