AC to DC Explained: How Is DC Power Made From AC Power Efficiently?

Electric current is the unseen thread in the great tapestry of our modern world that makes almost everything work. Whether it is the modest smart phone in your pocket or the massive data centers that power the internet, direct current (DC) is the blood. However, the electrical power that is supplied to our households and industries is predominantly alternating current (AC) and it is transmitted through power transmission lines connected to power plants. The workhorse of electronics that few people ever take notice of is the AC-to-DC converter that bridges this fundamental gap. It is a key part of the jigsaw, and it takes the long distance, high power capabilities of AC and turns it into the stable, predictable DC that our delicate electrical equipment loves. This paper explores the complexities of how DC power is carefully shaped out of AC and particularly efficiencies that characterize state-of-the-art kind of power solutions.

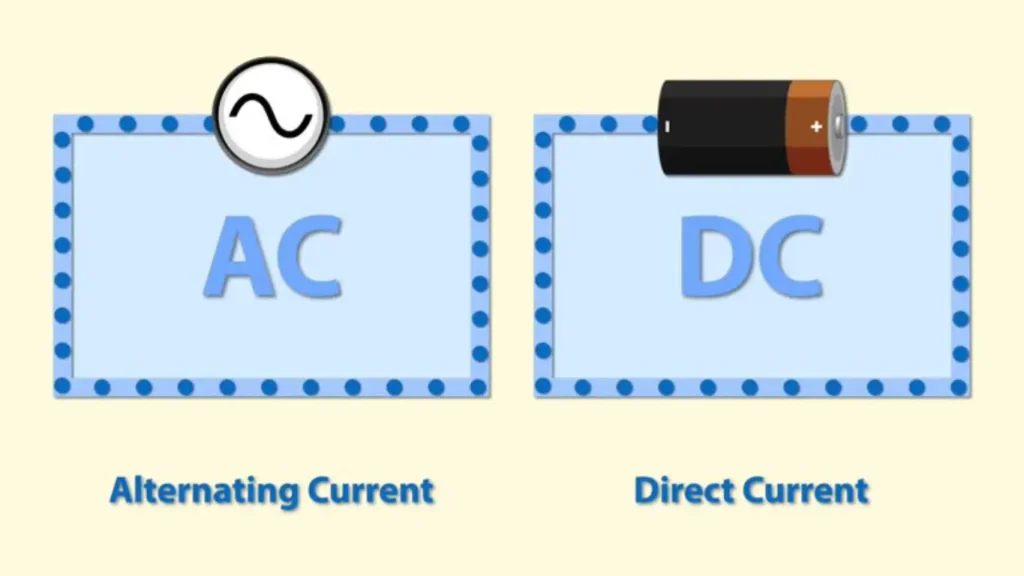

AC vs. DC: The Fundamental Differences

In order to appreciate the conversion, we must first understand the unique nature of AC and DC. Consider electricity as a stream of electrons.

In a DC system the electrons move in one direction continuously, just as a river that always runs downstream. Its constant voltage makes it suitable in powering sensitive electronic circuits that are sensitive to fluctuations in supply voltage.

AC, however, is a river that flows in opposite directions occasionally. The current and voltage vary in magnitude and direction and alternate back and forth like a rhythm. It is this alternating character that makes AC the preferred choice in long distance power distribution. The voltage can be increased or decreased easily with transformers, and the energy loss is minimal over long distances. It is the most common type of electrical energy in the power grid.

Here’s a quick comparison:

The basic problem, then, is to somehow transform the alternating, varying nature of AC into the constant, unvarying stream of electrons required by modern electronics. This change does not occur in one magical bound but is a carefully designed process of steps.

Step 1: Rectification: Transforming AC Waves to DC

Rectification is the first and most important steps in converting AC to DC. Consider, for example, the attempt to make a pendulum that is oscillating freely move in only one direction. This can be done through rectification which permits flow of electric current in a single direction. making the unsung heroes of this stage diodes. These semiconductor devices behave like one-way valves to electricity, they allow current to flow when the voltage is positive in one direction, and they inhibit current flow when the voltage tries to reverse, particularly at its negative peak.

There are primarily three types of rectifier circuits, each with distinct characteristics and applications:

• Half-Wave Rectifier: It is the most simple type. It incorporates one diode (or more to enhance the voltage rating) to conduct only the positive half of an AC alternation, and reject the negative half. The result is a train of positive pulses, and it is by no means a nice DC. It is cheap and highly inefficient (50 percent of input power goes to waste), and the quality of output is low.Full-Wave Rectifier: This is a much better design. Rather than just blocking the negative half of the AC cycle it reverses it, making both halves of the AC waveform positive pulses. This is commonly done with a center-tapped transformer and two diodes, or, more usually, with a bridge rectifier and four diodes.
• Bridge Rectifier: The most common full-wave rectification technique, a bridge rectifier incorporates four diodes in a diamond configuration. This cunning design assures that no matter what the polarity of the AC input is, the current will always flow in the same direction through the load. It is a highly efficient, commonly used solution because it offers a more continuous output compared to a half-wave rectifier and does not need a center-tapped transformer.

The output of any rectifier, though now unidirectional, remains a train of pulsating DC voltage waves instead of a smooth, constant voltage line. This pulsated DC contains much “ripple” which is a measure of the residual AC component. Further processing is necessary to convert this to the pure DC which most electronics need.

Step 2: Smoothing DC: Taming the Pulsating Current

Our AC signal, after rectification, has now been compressioned in one direction, however it is still more of a series of humps or pulses, than a flat line. Most sensitive electrical loads require a steady unchanging voltage and are not capable of using this pulsating DC. The second important thing is filtering, or “smoothing”, of this pulsating electric current.

The main component in this task is the capacitor. Imagine a capacitor to be a small reservoir or a temporary storage tank of electrical energy. As the pulsating DC voltage increases, the capacitor becomes charged very quickly storing energy. When voltage starts to decrease between pulses (the valleys of our waveform), the capacitor dumps its energy stored, thus filling in these valleys, and avoiding the voltage to decrease too suddenly. This is effectual in ironing out the ripples, just as a buffer would be used to smooth out unevenness.

How well this smoothing works is determined, to a large part, by the capacitance of the capacitor (its charge storage capability) and the load current. The larger the capacitor the more energy it can hold and the longer it can discharge, effectively producing a cleaner output with reduced ripple. But the solution of just adding a large value capacitor may not always be the best answer because of physical size, cost and inrush current constraints.

While a single capacitor can significantly reduce ripple, more advanced filtering techniques exist for applications requiring extremely low ripple. These include:

• LC Filters: A more suitable filter can be made by connecting an inductor (L) and a capacitor (C). inductor opposes changes in current, capacitor opposes changes in voltage. The combination makes a strong network and is able to save much on ripple as well as enhance the purity of the output.
• RC Filters: Sometimes it is possible to combine a resistor (R) with a capacitor (C) to filter. The resistor adds power loss, however, so RC filters are not as efficient as LC filters in high-power systems.

This filtering step is aimed at bringing the pulsating DC as near as possible to a pure, steady DC power voltage, and leaving the AC component, or ripple voltage, as small as possible. This gets the type of power ready to be refined in its last degree.

Step 3: Stable Power: The Role of Voltage Regulation

Despite the filtering, the DC voltage may still ripple a little owing to changes in the input AC voltage or alterations in the load attached to the power supply. In the case of sensitive electronics, such instability is not acceptable. Voltage regulation is the last, important process in the AC-to-DC conversion sequence to provide a constant and steady output voltage with little variations in input or load.

There are two primary approaches to voltage regulation:

• Linear Regulators: These are more simple in construction and functionalism. The operation of a linear regulator is very simple: it functions as a variable resistor, dissipating any surplus input voltage as heat in order to keep the voltage across the output constant. They have the advantage of a very clean low noise DC output, but efficiency is a major disadvantage. As they dissipate excess energy as heat they can get quite hot particularly when the input and output voltages differ greatly. This renders them inapplicable in high power applications or in applications where electrical energy conservation is paramount.

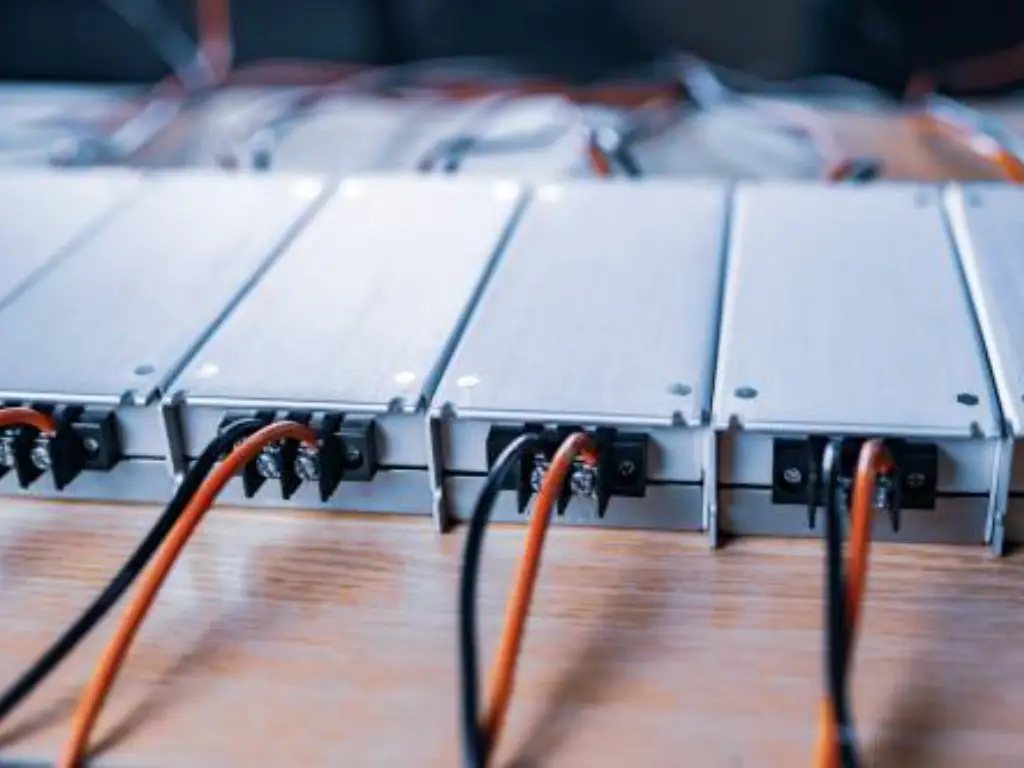

• Switch-Mode Power Supplies (SMPS): This is the area that modern power conversion really excels at in regards to efficiency. Instead of linear regulation, SMPS devices use a high frequency switch-mode regulation which turns a transistor on and off very quickly. The switching behavior enables them to charge and discharge energy in inductors and capacitors instead of wasting it as heat. The output voltage can be accurately regulated by limiting the “on” time (duty cycle) of the switching, and hence different voltages can be provided as required.

SMPS efficiency may be 80% to more than 95% much higher than that of linear regulators which may be as low as 50% or even less in certain applications. This efficiency is directly converted to saving of wasted electrical energy, low operation cost and low heat production which enable smaller and lighter power supplies. Though more complicated in construction and capable of producing more electrical noise (requiring careful filtering), the efficiency and size advantages of SMPS have caused it to become the default technology of most modern electronic equipment.

This is the process of making the jump between a ripple-filled unregulated DC and a rock-solid, steady DC power output, which allows the reliable functioning of everything in between microprocessors to industrial equipment, making the best use of electricity.

Choosing Your AC-DC Converter: Efficiency and Beyond

Choosing the appropriate AC-DC converter does not belong to guesswork, but rather to the area of matching technology to your needs. With decades of experience in power design, I can say that there are five things that make the difference between success and failure.

• Efficiency: Efficiency Modern SMPS units are 90%+ efficient, whereas linear regulators dissipate 40-60% of their input as heat. That discontinuity costs actual money – a 100W system left on all the time will consume $65 more per year with wasteful linear supplies.
• Size: SMPS has 5-10 times the power density of linear designs. I have swapped out shoe-box sized units with phone-sized converters that have the same performance.
• Total cost: Linear supplies appear less expensive at first – perhaps 20 dollars compared to 60 dollars SMPS. However, they are costly in the long run due to energy charges, cooling requirements and bigger enclosures. Industrial customers are experiencing 18-month payback periods to efficient switchers.
• Output quality: Audio applications need sub-millivolt ripple while LED drivers tolerate more noise. Medical devices demand ultra-clean power; motor drives don’t. Match specifications to actual needs.
• Thermal management: Linear supplies generating 50W waste heat need serious cooling. Efficient switchers run cool, enabling sealed enclosures and boosting reliability.

Define your priorities first – efficiency, size, cost, or output quality. Then match converter technology to requirements rather than following generic advice.

OMCH: Your One-Stop Automation Solutions Across Industriess

Switch-mode power supplies (SMPS) are preferred where efficiency, small size and low heat are critical factors (as in demanding applications). OMCH is a company specialized in the design and production of high quality SMPS solutions to fit varied industrial and consumer requirements. We are dedicated to leading edge design and our products provide you with unmatched performance, reliability and cost effectiveness in meeting your power conversion needs. Browse our products of high efficient power supplies at https://www.omch.com/switch-mode-power-supply/.

Selecting the appropriate converter is not a mere process of fulfilling a voltage need but a process of ensuring you select the converter that will best suit your system in terms of performance, life span and sustainability.

SMPS Components: Building Efficient Converters

This is because the modern SMPS designs realize their extremely high efficiency via well-choreographed interactions of components. Years of studying power supply failures and successes have taught me that component selection is the key to (or broken) converter performance. Every component has its role in the equation of efficiency.

• High-frequency transformers: Whereas the linear supplies of the past used large line-frequency transformers, SMPS transformers can run at 20-100kHz frequencies, reducing size by 80 percent without affecting the amount of power they can transfer. The frequency benefit is directly what allows the modern day miniature designs that can be implemented into palm sized enclosures.
• Switching semiconductors: MOSFETs and IGBTs are used as high speed electronic switches – they can be fully on (with low resistance) or fully off (with zero current flow). This binary operation removes the constant power dissipation that afflicts linear regulators. Recent GaN and SiC technologies are driving switching frequencies above 1MHz with further lowered losses, to allow converter sizes smaller than credit cards in 100W+ applications.
• Specialized support components: Fast recovery rectifier diodes reduce switching losses at the high frequencies of transition. Low ESR filter capacitors minimise ripple with low energy wasted as heat. IC precision controllersICs that monitor the output voltage and change the switching patterns thousands of times a second, keep the regulation tight as the load changes.

The quality of components is directly associated with efficiency and life time of the converter. High-quality semiconductors, lower on-resistance, decrease conduction losses. Capacitors of high grade with constant ESR qualities over temperature ranges guarantee constancy in performance. Good magnetic parts reduce core losses which dissipate energy.

The takeaway? The objective of systematically optimizing the components leads to efficient SMPS designs; it does not come with randomly picking the parts. All of these factors have to interact to give the 90%+ efficiencies that are the benchmark of modern converter operation.

Applications of AC-DC Conversion in Modern Life

The concept of AC-DC conversion is not a mere theory but a basic process that drives almost everything around the world that is governed by technology. Whether it is the tiniest personal devices such as phone chargers or the biggest industrial motors, using AC power grid that is variable in nature and converting it to steady state DC power, is what makes our electrical gadgets work. All these prevalent electrical applications stress the significance of AC-DC conversion efficiency.

AC-DC conversion will be everywhere. Take the example of consumer electronics: all smartphone chargers, laptop power adapters, and smart home devices use an AC-DC power converter to apply AC power to or charge the internal DC circuitry. Without those, our portable electronics would be chained to a battery or they would have no means of connecting to a wall socket. Likewise, IT equipment and computers such as desktops, servers, networking equipment, and other devices all use DC power, and their power supply units (PSUs) are excellent examples of complicated AC-DC converters.

Current LED lighting, including both household bulbs and streetlights, is operated with DC, so mains power must be efficiently converted with AC-DC drivers. Even most home appliances, though they employ AC motors, have internal control boards and digital displays which require stable DC power. Telecommunications Base stations and routers are operated by high quality DC power supplied by AC-DC rectifiers which also keep backup batteries charged so that operation is continuous.

In industrial control and automation, programmable logic controllers (PLCs), complex machinery, sensors and robotic systems all use power that is tightly regulated DC. In this case, industrial AC-DC power supplies, typically based on switch-mode power supply (SMPS) technology, are constructed to specifically handle the harsh environment, deliver high power output and have high reliability, which is important to have continuous operation of the factory.

Finally, the critical medical equipment requires very stable and usually isolated DC power, and its AC-DC converters are subject to high safety requirements. This also plays a significant role as we move on beyond fossil fuels into sustainable electrical energy production, such as the recently expanding electric vehicle market. The efficient and smooth functionality of these various applications depends on the advanced and mostly unheralded technology of AC-DC power conversion.

The Future of Efficient Power: Next-Gen AC-DC Conversion

The future of AC-DC power conversion has just begun. The need to have even more efficient, smaller and reliable power supplies is increasing at a faster pace as our world becomes increasingly electrified and interconnected. Some sizzling technologies and changing priorities are shaping the future of AC-DC conversion.

A microprocessor based on the Wide Bandgap (WBG) semiconductors, especially Gallium Nitride (GaN) and Silicon Carbide (SiC) is one of the most prominent advances. GaN and SiC devices, unlike conventional silicon-based components, can be switched at a greatly increased frequency, can conduct higher voltages with dramatically reduced energy losses, and can conduct much higher temperatures. This is directly translatable into:

• Higher Efficiency: Less electrical energy is dissipated as heat, so they run cooler and use less electricity, which is a considerable saving on operating expenses.
• Smaller Form Factors: Because they can switch more quickly, smaller value inductors and capacitors can be employed, resulting in dramatically smaller and lighter power supplies, which is vitally important in compact consumer electronics products as well as data centers where space is at a premium.
• Higher Power Density: A given amount of electrical power can be transferred with a smaller volume, creating the possibility of more powerful devices in a smaller area.

Beyond material science, other trends are shaping the landscape:

• Digital Control: The replacement of analog control of SMPS by a digital control increases precision, flexibility and allows the use of advanced control algorithms. This is resulting in improved dynamic response, fault protection and even adaptive control that can maximize efficiency at different loads.
• Power Factor Correction (PFC): demanded in an ever-growing number of areas, PFC techniques (typically part of the AC-DC conversion stage) are used to keep the power supply from drawing electric current form the AC mains in a manner that is not synchronized with the voltage. This increases the efficiency of the electrical grid overall and minimizes harmonic distortion.
• Modular and Distributed Power Architectures: Large systems are beginning to use modular power supplies, which offer scalability, redundancy and easier maintenance. With distributed power systems, the conversion is nearer to the load, reducing distribution losses.
• Intelligent Power Management: Power supplies of the future will be more intelligent, featuring integrated communication interfaces to allow monitoring of performance, forecasting of failures and real-time optimization of power within a larger power system.
• Sustainable Design: The recent focus on more eco-friendly design, such as lower standby power draw, increased recyclability, and electricity sustainability sourced by AC-DC conversion will further innovation in this area.

Efficiency, miniaturization, and the continuous quest thereof, as well as the improvement of materials and control technologies, hold a bright future of AC-DC converters. These inventions will go on to quietly execute our devices and create a more energy-saving and technologically enhanced world.
